Whole Retreading Line of OTR Tire China Supplier

Brand Name : HHS

Model Number : HD-800-2600

Certification : ASME CE, ASME CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD:2000-20000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 20 working days

Packaging Details : wood package /20-40 container

Max Working Press : 0.8 MPa

Warranty : 1 years

Core Components : PLC, Pressure vessel

Color : Customer's Requirements

Advantage : full automatic

Key Selling Points : Easy to Operate

Contact Now

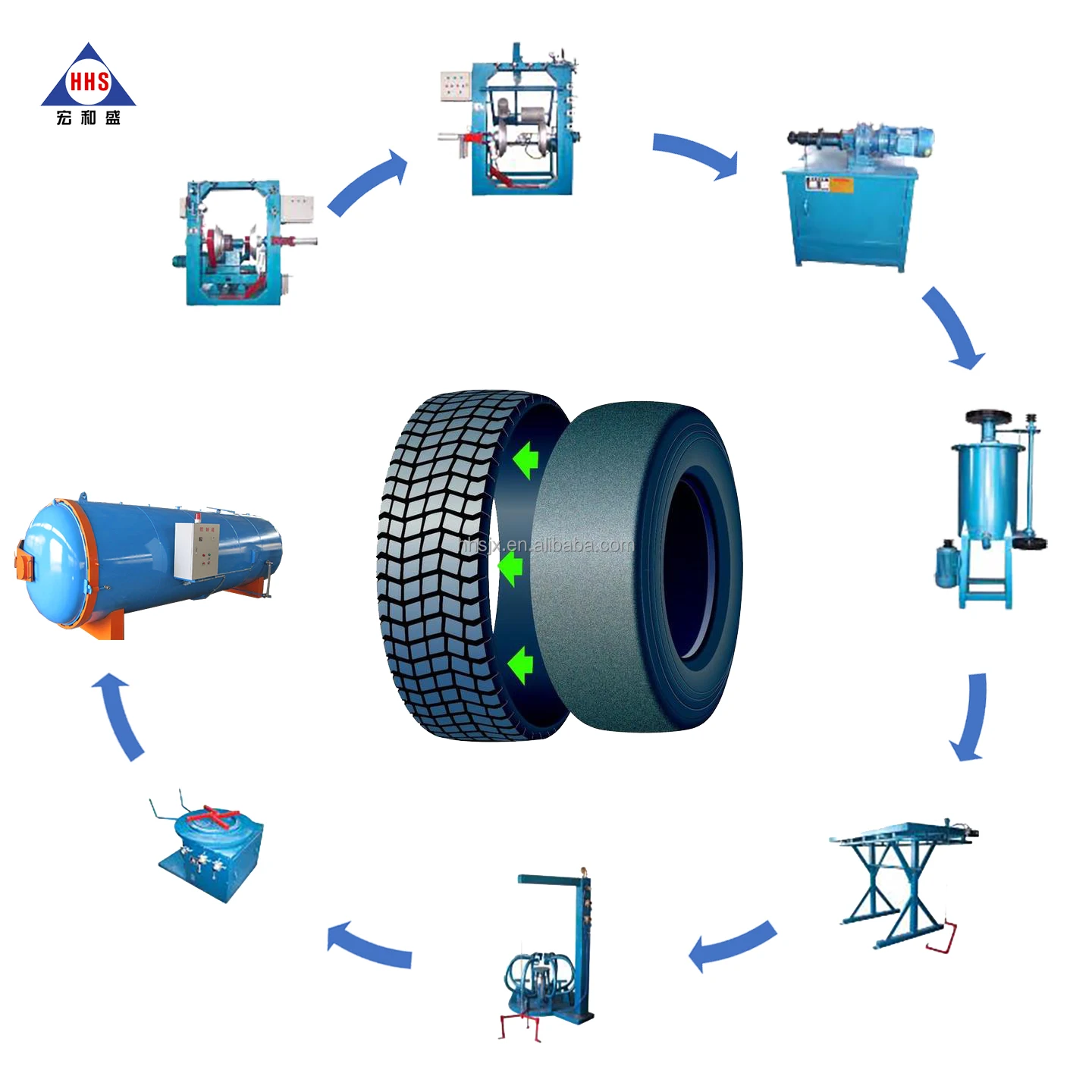

Truck Tire Retreading Whole Line Machines

Whole Retreading Line of OTR Tire China Supplier

1.Initial Inspection Machine

Whole Retreading Line of OTR Tire China Supplier

Weight:200 Kgs

Power:1.5Kw,380V,50Hz

Dimension: 1100x750x850 mm

Every single tire casing will receive a thorough inspection identifying potential defects.Using Melion multiple methods to inspect tires for defects and ensure only high quality casings to be retreaded.If repairs are needed, they are administered after inspection.

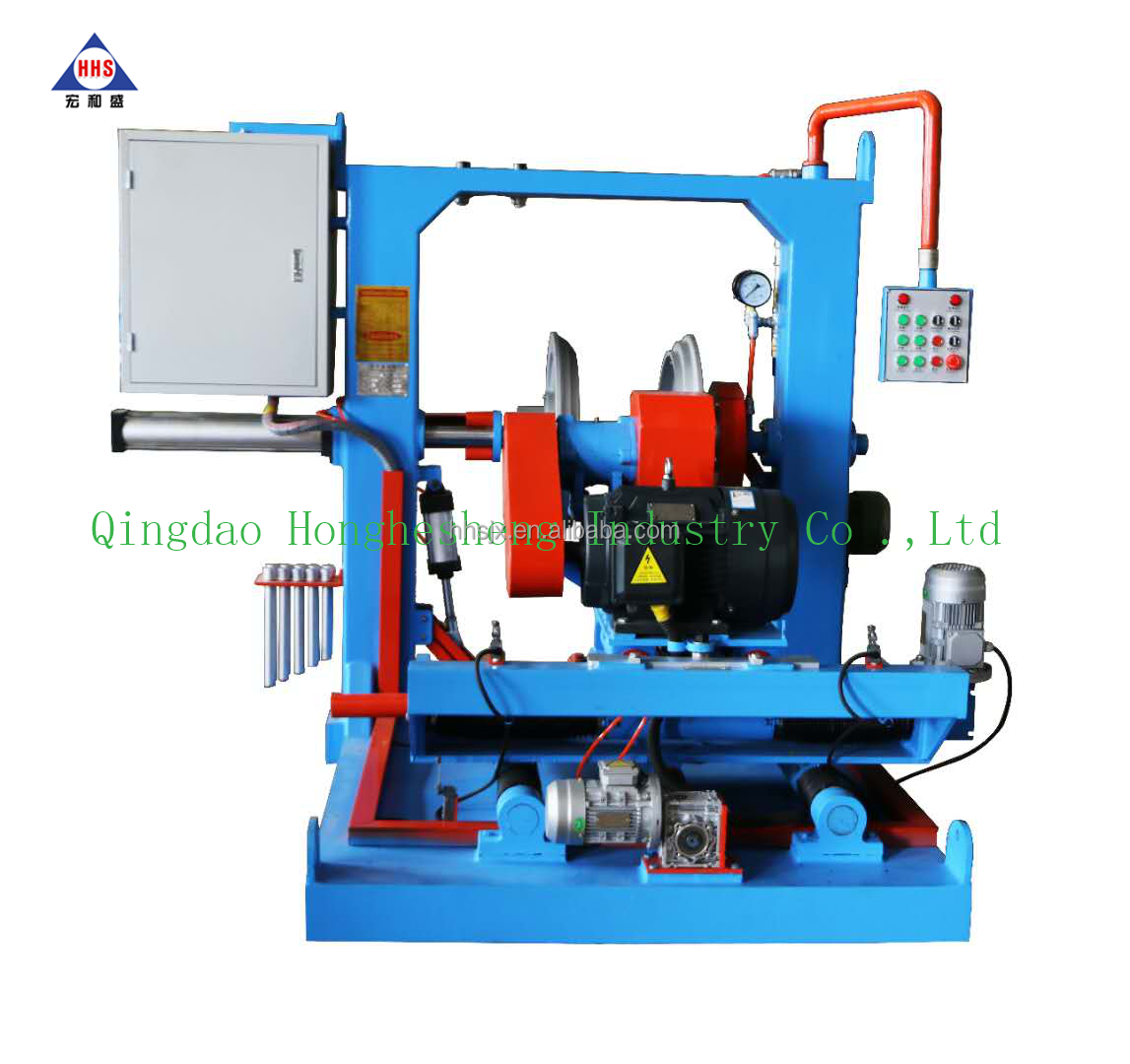

2.Buffing Machine

Standard Size: 15'',16'',20'',22.5''
Motor Power: 16Kw

Dimension:1600x1800x2100 mm
The tire’s old tread is mechanically removed on high speed buffers.Buffers are extremely accurate and will remove the proper amount of old rubber while turning the tire to an exact specified diameter and radius.

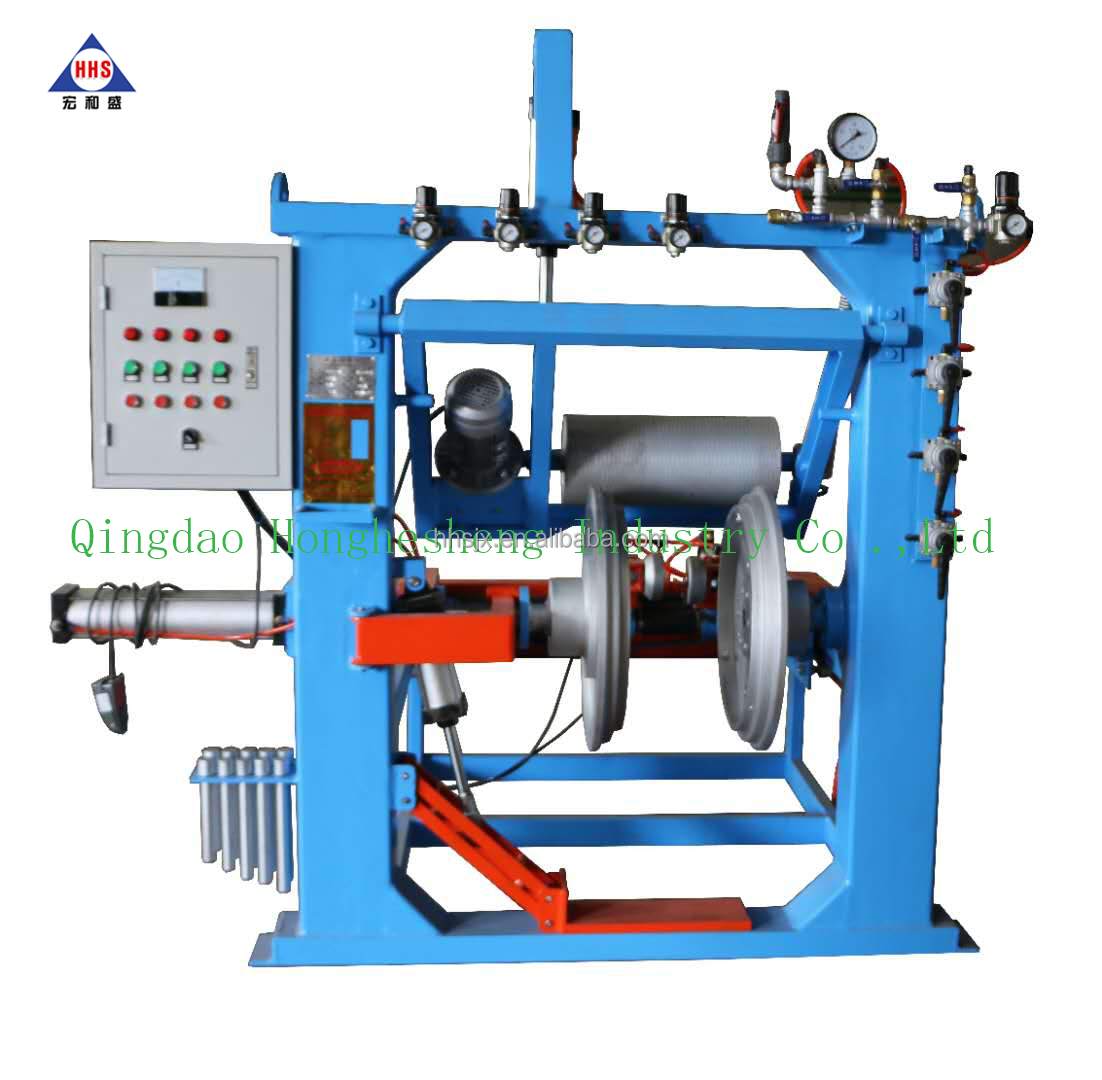

3.Tread Building Machine

Whole Retreading Line of OTR Tire China Supplier

Dimension:1800*2100*2100mm

Wheel Chuck:15",16"-20",22.5"

In the Pre-cure Tire Retreading System, the tread rubber has already been vulcanized with the new tread pattern design. The bugged tire needs a thin layer of cushion gum to be wrapped around its crown area. The pre-cured tread rubber(PTR) is then applied with building machine.

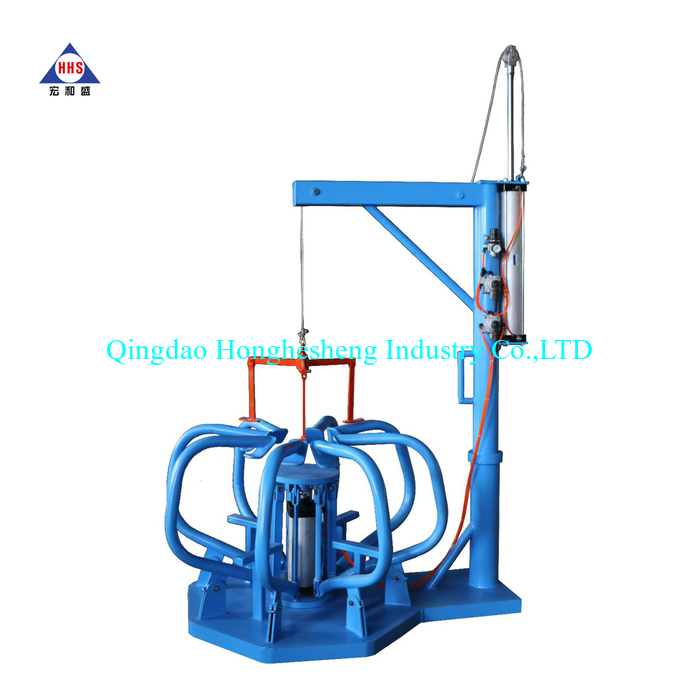

4.Envelope Spreader

Whole Retreading Line of OTR Tire China Supplier

Dimension:1600x1500x2200 mm

Operate the air cylinder and drive the Spreading Arms outwards to spread the Envelope. Then open the Gripper and grip the bead, and then lift the tire up with the cylinder-driven cable wire and guiding pulley. Rotate the lifting arm and lower the tire into the center of the Spreading Arms, and put it into the envelop. Manipulate the Air Cylinder to retrieve the Spreading Arms and release the Spreading Pads off the Envelop. Then lift the tire out of the Spreader.

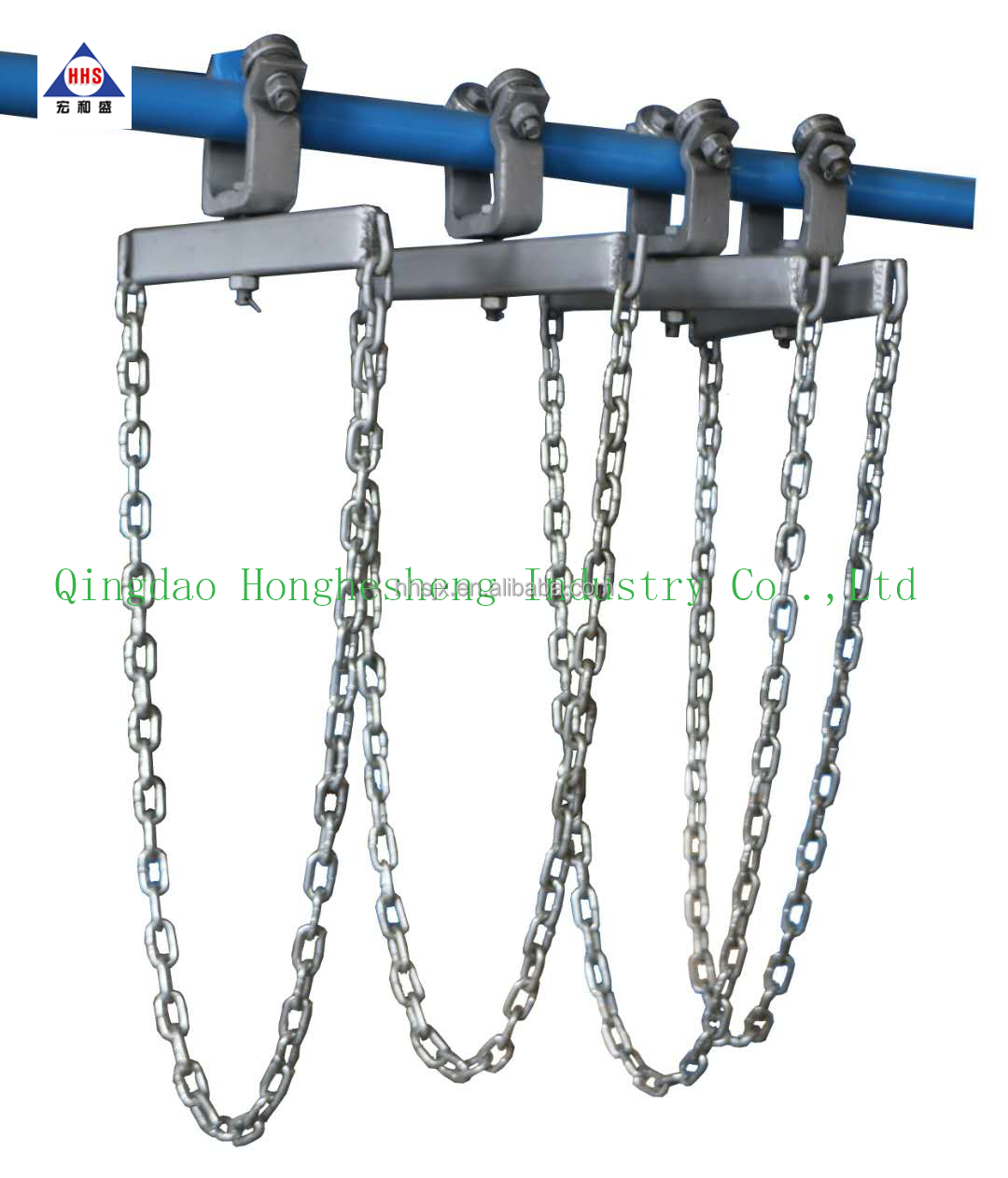

5.Monorail System

Whole Retreading Line of OTR Tire China Supplier

Dimension: 4000x1600x2100 mm

Description:

The monorail & hooks system increase productivity by reducing chances of casing contamination and allows for faster loading and unloading of tires.This increases your work place safety and productivity.

6.Curing Chamber

Whole Retreading Line of OTR Tire China Supplier

Dimension: 5500x2100x2350 mm

Heating Power:60 Kw

Tires are then placed in Curing Chamber and the pre-cured tread becomes adhered to the tyre through a vulcanizing process.

7.Rubber Dust Collector

Whole Retreading Line of OTR Tire China Supplier

Motor Power:3KW

Weight:220kgs

Dimension:1600*780*2000mm

Collecting Rubber Crumbs which buffed off old tread by buffing machine.

8.Multifunctional Repair Stand

Whole Retreading Line of OTR Tire China Supplier

Power: 0.18 Kw
With advances in state-of-the-art repair materials and repair methods, many of these tyres can be routinely repaired and in most cases can be retreaded when the original tread is worn off. The repair station is where any surface injury is treated using effective material and tools for grinding and patching.

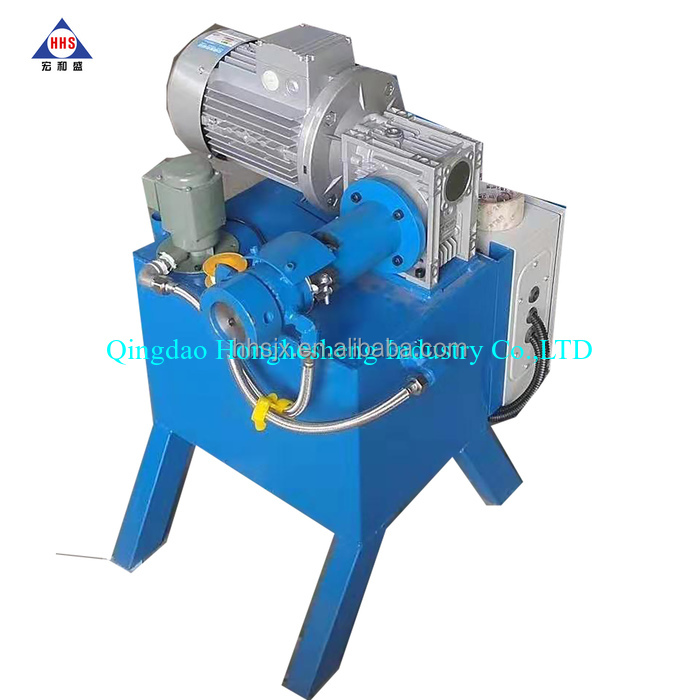

9.Rubber Extruder Machine

Whole Retreading Line of OTR Tire China Supplier

Even in small injuries it is critical that the injury is cleaned and filled. If this is not done, severe rust, separation and steel cable looseness could take tyre out of service. The injury should be inspected, and then cleaned out with a carbide cutter. After cementing the injury, a vulcanizing rubber stem should be applied to “fill” the injury. This would create a permanent repair that maximizes tyre life.

10.Cement Mixing Tank

Whole Retreading Line of OTR Tire China Supplier

Weight:90 Kgs

Motor Power: 1.5 Kw

Dimension: 800x800x1500 mm

Engineered with explosion-proof motor,Cement Mixing Tank stir industrial solvent and rubber materials evenly to guarantee the procedure of cement spraying.

Whole Retreading Line of OTR Tire China Supplier
